1707-00AB-03.00

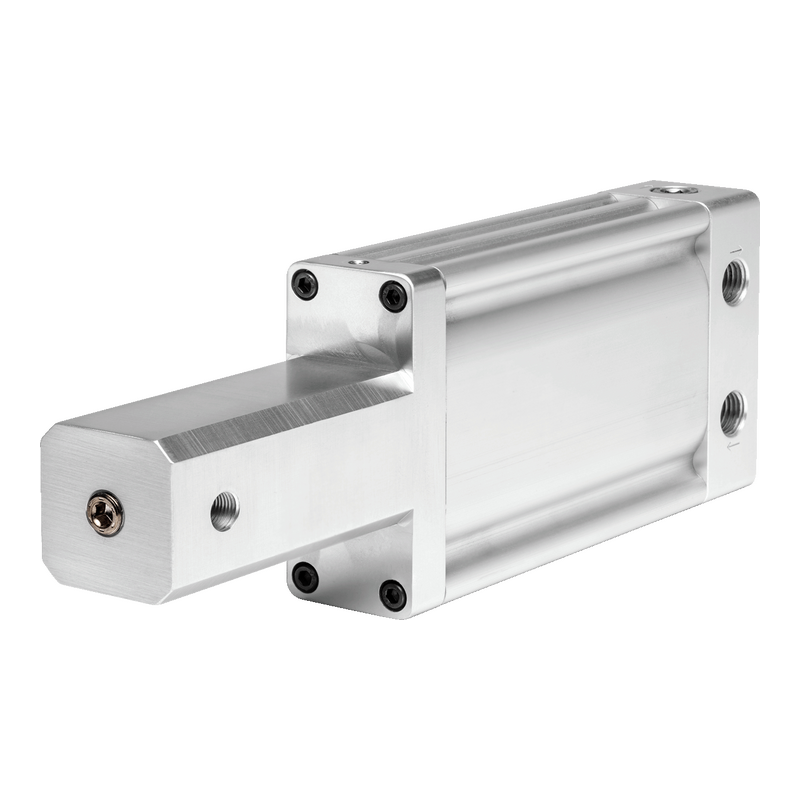

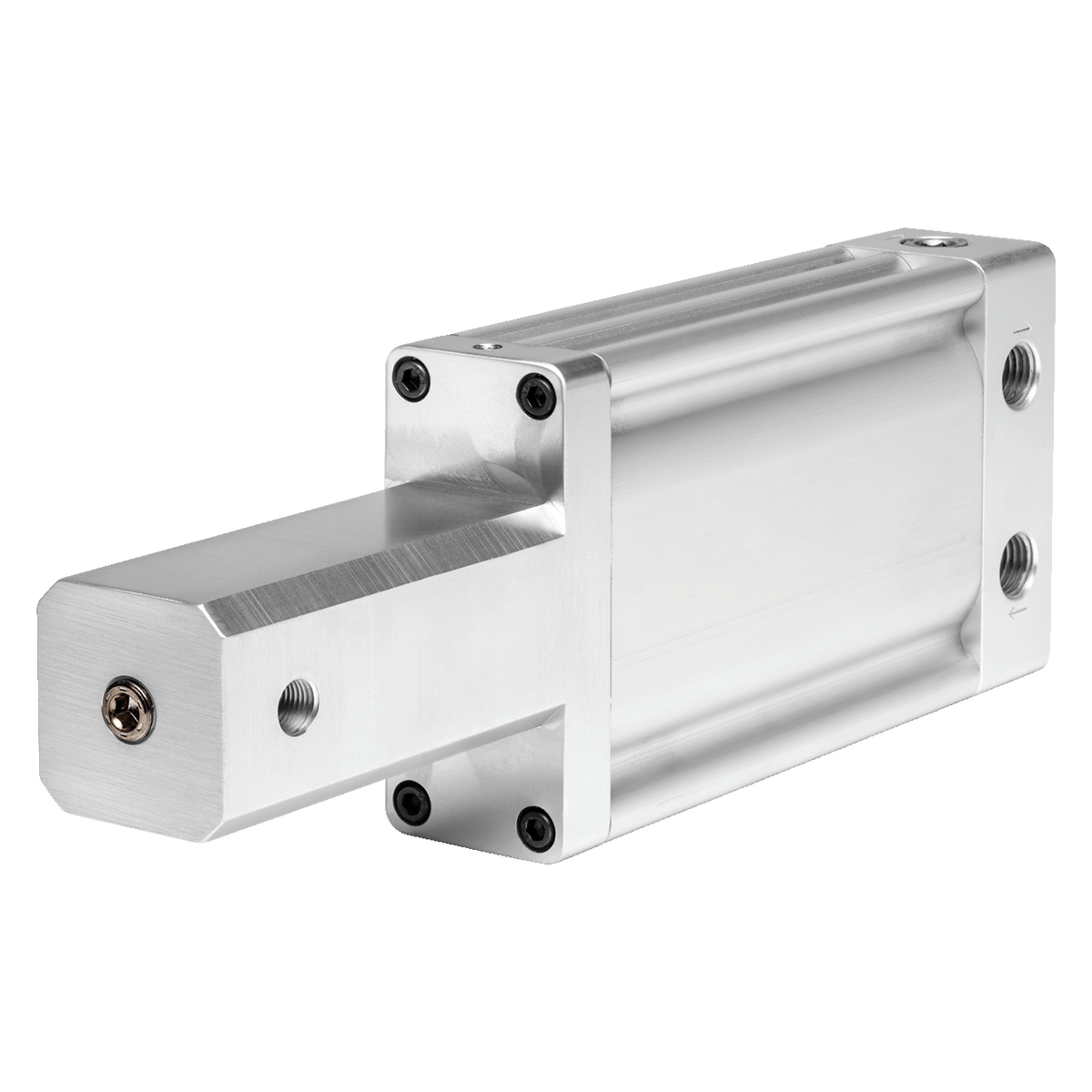

Model: OVLBOOST™ 44 - 3.00 in. Stroke Air/Oil Intensifier, Single End Side Port, 7.8:1 Ratio
ATTRIBUTES:
- 7.8:1 RATIO
- 100 PSI MAX AIR PRESSURE
- SINGLE END SIDE PORTING
- PNEUMATIC DUAL ACTING
- 5/8 DIA. CHROME HYDRAULIC ROD
- 3 INCH STROKE
- .920 CU-IN HYDRAULIC DISPLACEMENT
Estimated Lead-Time: 5-7 business days ARO @ Qty < 4 pcs.
| Stroke Length (in) | 3.00 |
| Description | Intensifier |
| Hyd. Fluid Displacement | .920 cu.in. / Stroke |
| Max Input Pressure | 100 psi |
| Max Output Pressure | 780 psi |
| Model | OVB44AB3.0 |
| Port Location | Side |
| Seals | Buna-N |
Click image to enlarge
